Schuett-biotec GmbH, Germany

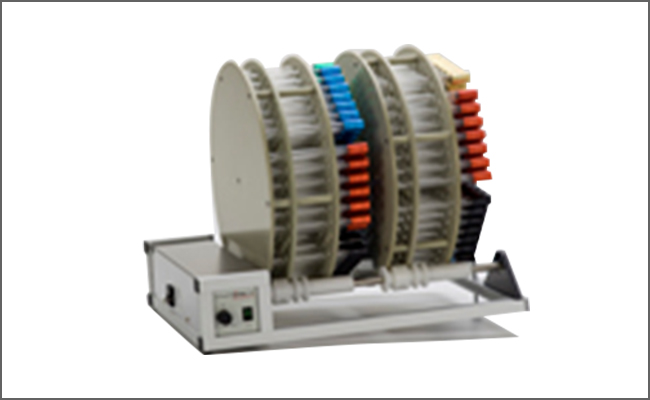

Roller system-INCUDRIVE R

Features :
  • Roller system with drive unit and roller frame, without roller drums.
  • to slowly rotate drums with test-tubes and bottles
  • can be combined with INCUDRIVE H

Rotational speed of drums 0.1 to 2 rpm (optional 0.75 to 15 rpm) as well as inclination of frame are continuously adjustable. For use in an incubating room or any other temperature-controlled environment. Drums for test-tubes with 100 and 160 mm length available. Custom-made roller drums for other vessels can be manufactured on request

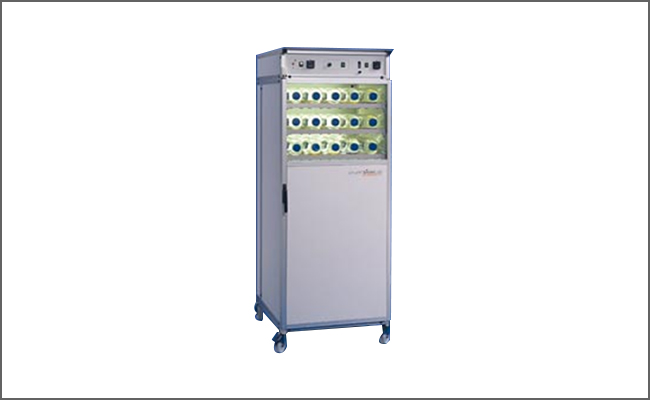

Roller bottle Incubator for rolling up to 90 bottles INCUDRIVE 90

Roller bottle incubator for 90 bottles for the production of e.g. vaccines using adherent cell cultures. Consisting of an incubator and a drive mechanism for rolling up to 90 cell culture bottles with a diameter of between 100 and 120 mm and 270 mm length, on 9 levels, of 5 bottles side by side in two rows. The rotational speed of a bottle with diameter 120 mm is continuously adjustable from 0.1 to 2 rpm. Heating of only the exactly needed space for the cultivation of the seed cultures and the production cultures results in considerable energy savings compared to large warm rooms. Temperature range is +5°C above room temperature to +50°C, continuously adjustable. With protection against over-heating.

INCUDRIVE 90 comes with castors and is therefore mobile. Production capacity can be adapted by purchasing additional INCUDRIVE 90 devices as needed. Methods, which are generated inside one INCUDRIVE 90 can be scaled up to the number of devices, which are required for the production. Improved safety during production – the risk of problems during cultivation is limited to just the one incubator in question.

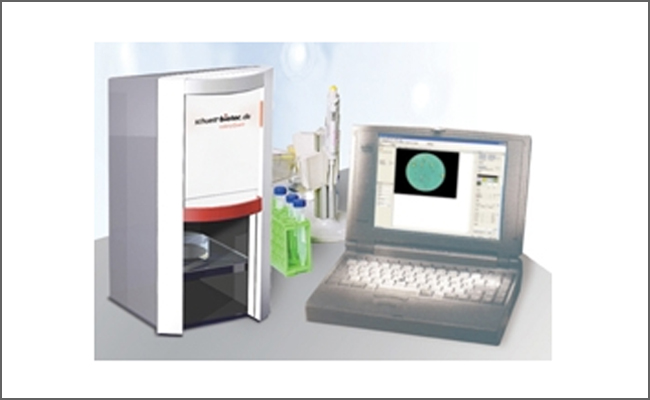

Automated colony counter- ColonyQuant Cum Antibiotic Zone Readers

The schuett colonyQuant is comprised of a CCD-Firewire camera (colour) with autozoom and autofocus, a light-proof sample chamber and the software for automated colony counting. Software for selection according to colour, size and shape.light-proof sample chamber with CCD-Firewire-camera (colour). Image acquisition and simultaneous evalution within seconds. Tables and images may be stored digitally. Agar plates, nutrient disks, inhibition zone analysis, spiral plating.mixed cultures, up to 8 colours simultaneously per petri dish.

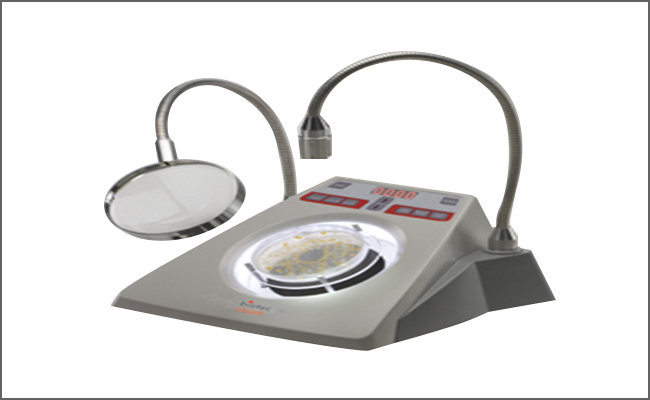

schuett count- Manual colony counter

Designed for reliable and efficient counting of bacterial colonies and bacteriophage plaques growing on nutrient agar or nutrient disks/filter disks in Petri dishes. three modes of illumination: from below, from the side and from the top (optional). Petri dishes or nutrient disks with Ø 90 mm, Ø 60 mm or Ø 150 mm (optional). High transparency of colonies reached by LED-light source - practically no heat transferred to the sample light intensity, pressure sensitivity for count and acoustical counting signal adjustable. Average determination. Data transfer via USB
