Gibertini Elettronica S.R. , Italy

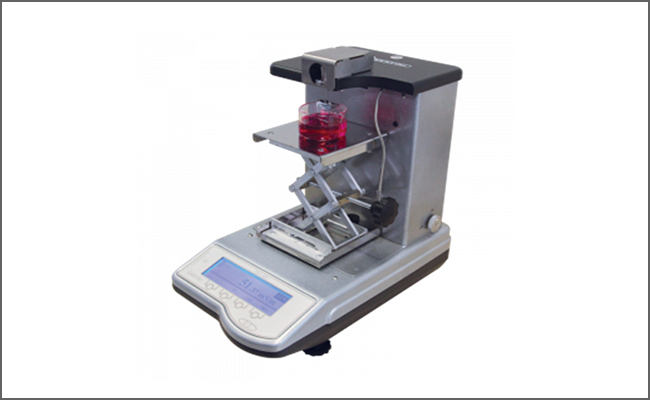

Digital Surface Tensiometer- DCA

GENERAL FEATURES
  • Display of surface tension value expressed in mN/m (dyne/cm) measured with the Wilhelmy method
  • Precision: ± 0.02 mN/m (dyne/cm)
  • Capacity: 1-1000 mN/m resolution 0.01 mN/m
EQUIPMENT
  • Manual adjustable lab jack
  • Thermometric probe PT 100 1/3 DIN:, temperature range: 0-50°C, Accuracy: ±0.05°C, Readability: 0,1 °C
  • Glass plates (dimensions 24x24x0.15 mm)
  • Suspended system for the arrangement of glass plate
  • Glass container for liquid sampleAccessory

Digital Surface Tensiometer- DCA 400

Specification
  • Display of surface tension value expressed in mN/m (dyne/cm) measured with the Wilhelmy method
  • Precision: ± 0.02 mN/m (dyne/cm)
  • Capacity: 1-1000 mN/m resolution 0.01 mN/m
EQUIPMENT
  • Glass plates (dimensions 24x24x0.15 mm)
  • Suspended system for the arrangement of glass plate
  • Glass container for liquid sample
  • manual adjustable lab jack
  • Software with the following performances:
    • contemporaneous display on PC:
    • force changes during the measurements
    • past time
    • surface tension value
    • data recording (useful for other elaborations)
    • changing value of perimeter plate (if different from the standard)
  • Automatic jack with programmable speed (from 21 to 1000 μm/s)
ACCESSORIES INCLUDED
  • Platinum Wilhelmy plate
  • Platinum Du Nouy ring
  • Floater calibrated in weight and in volume and double wall cylinder for density measurement:
    • range of measure for the density: 0.5 ÷ 2.25 g/cm³
    • readability: 0.00005 g/cm³
    • precision and reproducibility: ± 0.00005 g/cm³
  • Specific container for sample thermostatation
  • Special plate for metrological control

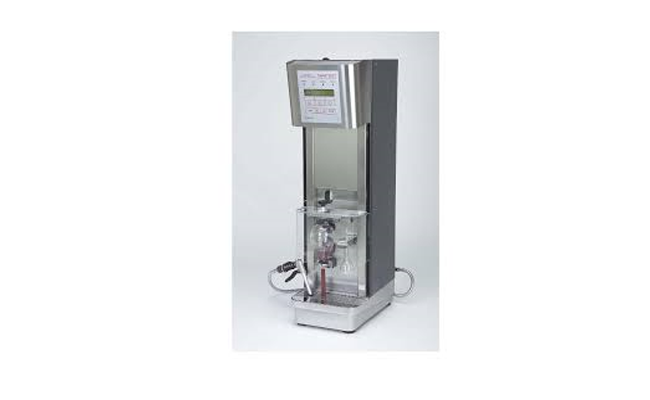

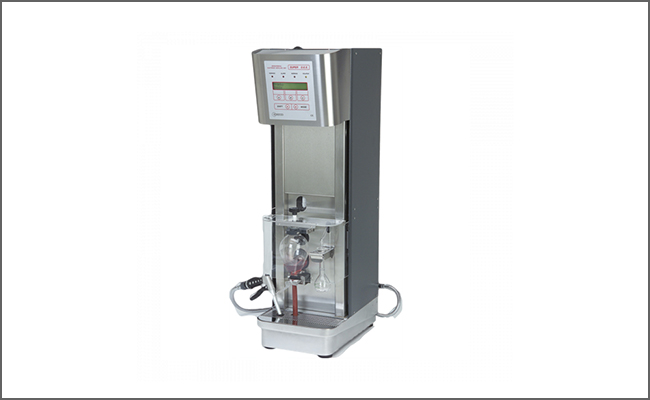

Digital Distilling Unit- Super Dee With Or Without Vade

In compliance with the official methods for the determination of the alcoholic strength by volume in wines, musts and spirits (Regulation OIV) and of the volatile acidity.

COMPLETELY AUTOMATIC INSTRUMENT that allows to obtain a distillate of wine, spirits, scents or other alcoholic solutions to determinate alcoholic strength by volume.

INTEGRATED STEAM GENERATOR directly connected to tap water, with user replaceable demineralisations column (autonomy 100 litres – approximately 400 analyses of volatile acidity). There is no more need of distilled water. After the distillation the instrument automatically locks to avoid any waste of water.

Available also without generator (mod. SDEE/SV).

EXECUTION TIMES
  • Distillation of wines: 100 ml in 3÷4 minutes – 200 ml in 6÷7 minutes
  • Volatile acidity: 250 ml in 6÷7 minutes

Distillation of spirits: 4÷8 minutes

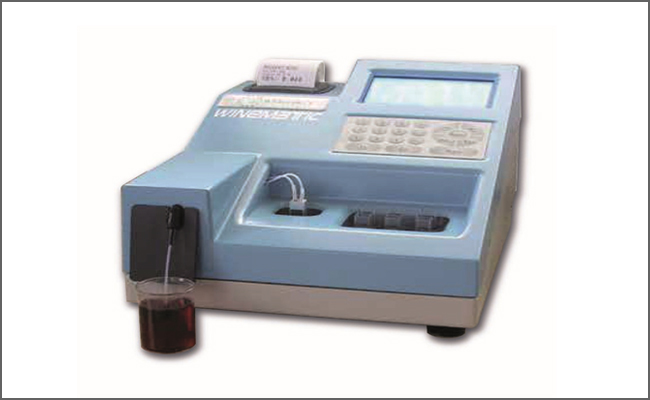

Winematic

Multiparametric Analyzer For Oenology for proper control of the vinification processes. Already programmed methods in the software : ACETIC ACID, L-MALIC ACID, L-LACTIC ACID, D-LACTIC ACID, D-GLUCONIC ACID, CITRIC ACID, TARTARIC ACID, PYRUVIC ACID, AMMONIA, α-AMMINIC NITROGEN, ACETALDEHYDE, GLUCOSE+FRUCTOSE, GLUCOSE , GLYCEROL , SO2 FREE, SO2 TOTAL, CHLORIDE, MAGNESIUM , IRON (IONIC), CALCIUM (IONIC), COPPER (IONIC), POTASSIUM, ANTHOCYAN, CATECHINS, TOTAL POLYPHENOL (Folin-Ciocalteus) , TOTAL POLYPHENOL INDEX (IPT at 280nm) , COLOUR (420 – 520 – 620 nm), SUCROSE, UREA
