Riebesam GmbH & Co. KG

1 - Cleaning, Disinfection and Drying machines

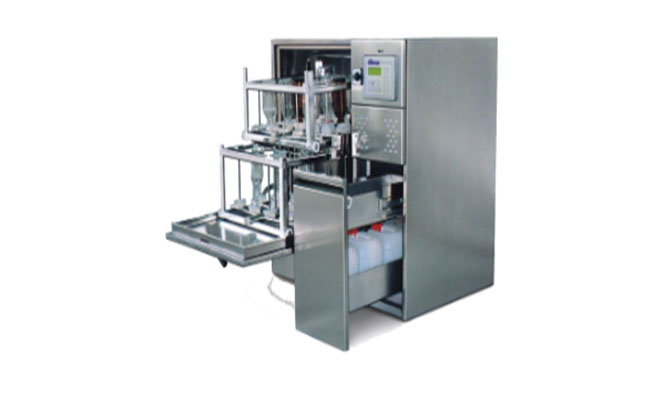

Meeting the specific requirements of labs with restricted space, the RIEBESAM Series 22 has been designed for undercounter installation.Labor Typ 22 Width 900 mm

Height 815 mm + 5 mm /-0 for undercounter

  • High quality professional concept and design
  • Available with or without incorporated Drying unit
  • Optional execution in customized stainless steel quality available

The capacity of the Cleaning-, Disinfection- and Drying machine Series 22 can be increased with a separate dedicated hot air drying cabinet.

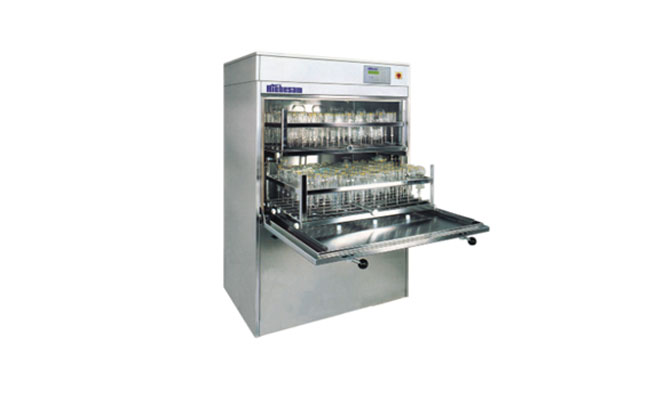

2 - Cleaning, Disinfection and Drying Machines

High quality professional concept and designLabor Typ 28

  • Wide chamber machine
  • Constructed for high capacity and cleaning of animal cages or machine parts
  • Available with or without incorporated Drying unit
  • Single level or two / three levels operation can be selected
  • Upper treatment level(s) with telescopic rack support
  • Operation with two or three racks without utilisation of upper telescopic rack support
  • Flexible operation with modular racks
  • Racks can be used in all washing levels
  • Racks for direct nozzle injection
  • Racks for indirect spraying through the rotating washing wing of a rack from the bottom
  • Racks for pipette cleaning
  • Flow chamber for pipettes and (glass) tubes
  • Customized racks for machine parts
  • Washing temperature up to 93°C
  • Drying temperature up to 110 °C
  • Special washing chamber heights available
  • Optional execution in customized stainless steel quality available

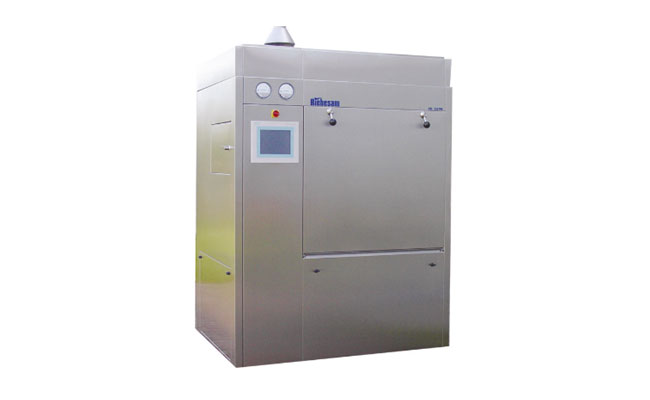

3 - Pharma Grade Washers

  • Riebesam Pharmaceutical washers are built according to the finest finish, offering among many other valuable features:
  • Accurate design according to cGMP, GAMP and FDA guidelines
  • 316L stainless steel (1.4404 / 1.4435)
  • Deadleg free chamber design with radiused corners and electrically polished (mirror polished) washing chamber
  • Pharmaceutical grade self draining recirculation pumps (e.g. Hilge)
  • Final Rinse options
  • Diaphragm valves (e.g. Gemü, Sisto)
  • Orbitally welded piping with TriClamp or aseptic sterile flanges (e.g. Südmo, Neumo)
  • Non stainless steel parts FDA approved
  • High performance drying unit with H13 filter as last element in the air flow
  • State-of-the-art SPS controllers (e.g. Siemens S7)
  • Data acquisition according to 21CFR Part 11 guidelines
  • Extensive documentation and IQ / OQ support including FAT (Factory Acceptance Test) and SAT (Site Acceptance Test)
