SYKAM GmbH, Germany

Amino Acid Analyzer

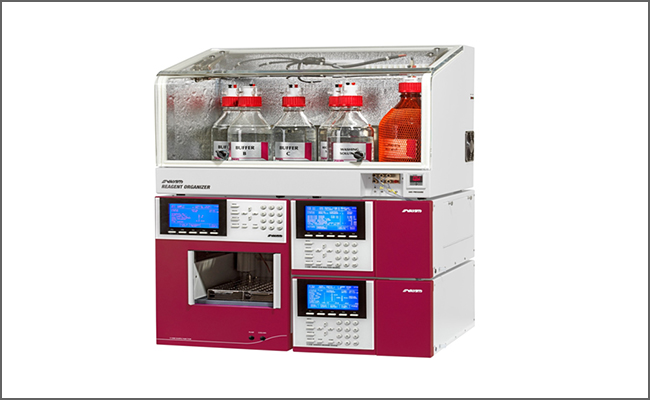

Amino Acid Analyzer S 433

Classical amino acid analyzers, based on cation exchange chromatography followed by post column derivitazation with Ninhydrine. For amino acid analysis in food and feedstuff analysis classical amino acid analyzers are the mandatory method for compliance with the EU Commission Directive 98/64/EC describing cation exchange chromatography followed by post column derivitazation with Ninhydrine. The Sykam S 433 Amino Acid Analyzer is a turn key analyzer for physiological fluids and food/feedstuff hydrolysate amino acid analysis. The Sykam S 433 Amino Acid Analyzer is developed as a complete operational system completed with a series of ready to use buffers, reagents and columns for physiological fluids and food/feedstuff hydrolysate amino acid analysis. control software is fully 21 CFR compliance.

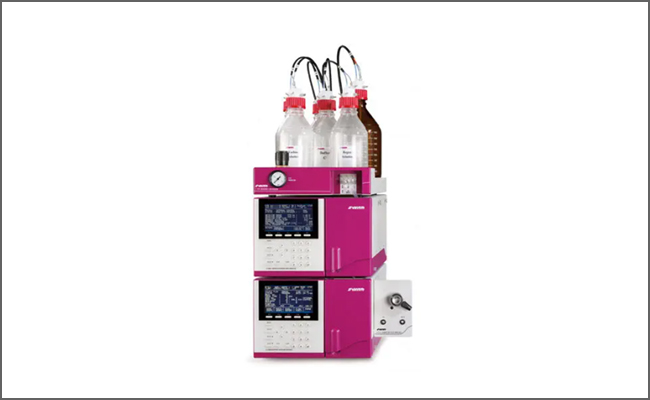

Amino Acid Analyzer S 430

In addition to the fully automatic S 433, there is alsoa low-cost variant available equipped with a manual injection valve instead of the autosampler and a reagent organizer without cooling option. This cost-effective version is well suited for laboratories with small quantities of samples. control software is fully 21 CFR compliance.

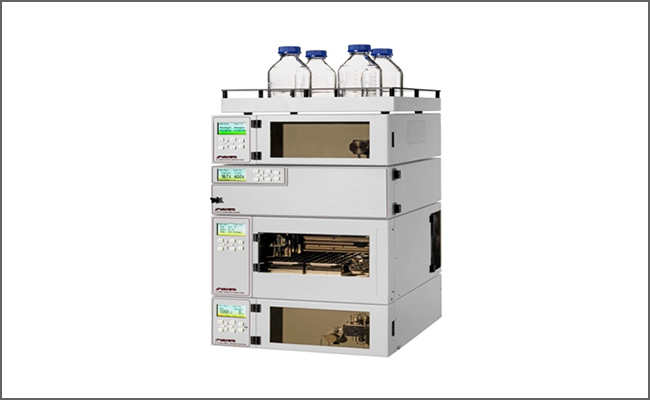

High Performance Liquid Chromatography HPLC SYSTEM S600

The S 600 range consists of micro, analytical and semi-preparative pumps, an autosampler with a capacity of 120 samples and optional sample temperature control, column ovens and a range of detectors. Apart from complete automated PC-controlled configurations, the modular nature of the system also allows for independent operation of each unit of choice. The Sykam S 600 System also offers advanced digital and analog connectivity to enable maximum integration possibilities with existing HPLC systems.

• The available pump configurations are: The isocratic pump, the low pressure quaternary gradient pump with adjustable mixing volume and dynamic mixer and optional built-in degasser and a high pressure binary gradient system. A high pressure binary gradient system can be configured by using two pumps. The pump is available as stainless and as biocompatible PEAK version. With three available flowrate ranges (micro, analytical and semi-preparative version), the pump configuration can be adapted to virtually any HPLC application. Software Fully 21CFR Complience
• Available detectores are UV-Vis, PDA, Refractive Index

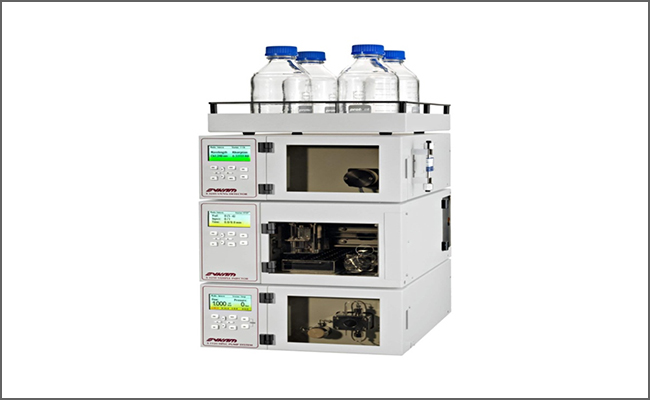

High Performance Liquid Chromatography HPLC SYSTEM S500

• The Sykam S 500 System Series of HPLC instruments are designed to allow configuration of a complete automated HPLC in a “tower-concept” with a small footprint, taking up as little as possible laboratory bench space. With a choice of manual control or complete system control by a PC with control software, the S 500 series of instruments allows flexible configuration for a multitude of HPLC applications. The available pump configurations are: The isocratic pump, the low pressure quaternary gradient pump with adjustable mixing volume and dynamic mixer and optional built-in degasser and a high pressure binary gradient system. A high pressure binary gradient system can be configured by using two pumps. The pump is available as stainless and as biocompatible PEAK version. With three available flow rate ranges (micro, analytical and semi-preparative version), the pump configuration can be adapted to virtually any HPLC application. Software Fully 21CFR Compliance.
• Available detectors are UV-Vis, PDA, Refractive Index

Ion Chromatography System

S 151-A Anion Chromatography System

The S 151-A Anion Chromatography System is configured with S 150 ion chromatography module consisting of an integrated column-oven, suppressor unit and conductivity detector for anion analysis. The system is completed by the Sykam S 1130 IC Pump and the S 5300 IC autosampler. Software Fully 21CFR Compliance.

Automatic Cation Ion Chromatography System S 152

The S 152-A Cation Chromatography System is configured with S 150 ion chromatography module consisting of an integrated column-oven, suppressor unit and conductivity detector for anion analysis. The system is completed by the Sykam S 1130 IC Pump and the S 5300 IC autosampler. Software Fully 21CFR Compliance.

S 153-A Dual Anion / Cation Ion System

The S 153-A Dual Anion / Cation Ion Chromatography system is the complete integrated time saving solution for simultaneous routine analysis of anions and cations.

All the Sykam Chromatography instruments are controlled by 21 CFR Compliance “Clarity” Software.
