Korea Kiyon Ltd

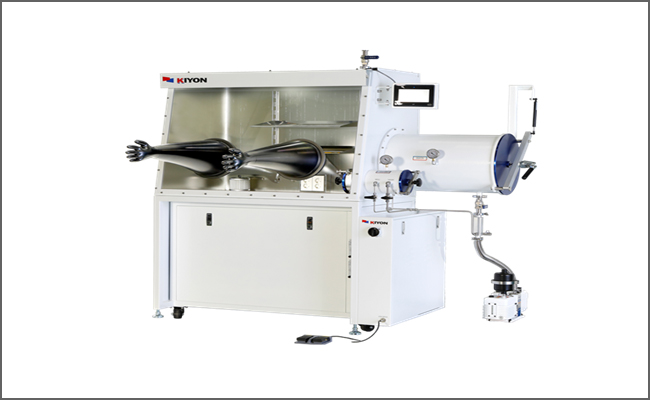

Glove Box

• Glovebox is designed to provide a hermetically sealed&highly customized working space under a very tightly controlled.
• Glovebox expansion features include additional antechambers for flow processes, cold storage freezers process vacuum, ovens and furnaces and full line of accessories.
• It can achieve and maintain less than 1ppm H2O and O2 when connected to our gas purification system.

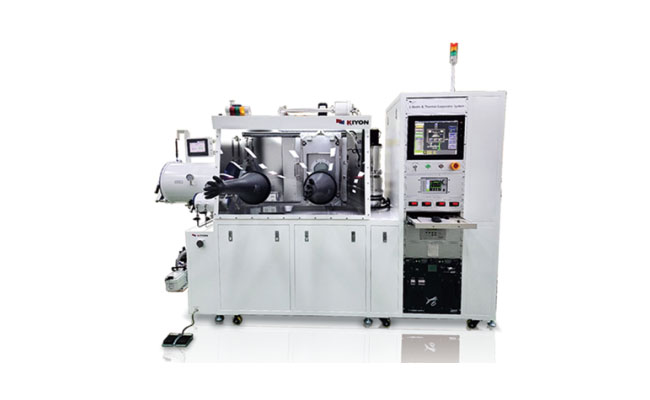

Thermal Evaporator

Korea Kiyon’s offers Vacuum Deposition System - Thermal Evaporator /KESD-170, tailor-made system which is integrated with Glovebox system through its own in-house designing.

Features :

• Standard Chamber Size: 450(W) x 450(D) x 550(H) mm
• Sample Size: 170 x 170 mm
• Vacuum Capacity: 5.0 x 10-7 torr
• Chamber Working Pressure: Less than 5.0 x 10-6 torr
• Film Thickness Uniformity:< + /-5 % within 156 X 156 mm Glass

Design

• Sliding door allows easy and safe sample loading
• Isolated rear door for easy cleaning maintenance

Configurartion

• Auto Control by 10.5“ Touch Panel (Auto Pumping, Auto Venting, Auto System Shut Down
• Co-Deposition available
• Sample Rotation / Heating or Cooling(Optional)

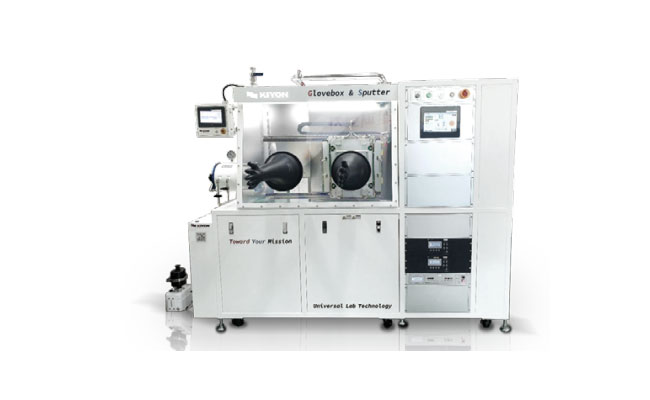

Sputter

Korea Kiyon’s Vacuum Deposition System : Sputter /KSSD-100 with following features Design and configurartion

Features :

• Standard Chamber Size: 450(W) x 450(D) x 500(H) m
• Sample Size: Max. 100 x 100 mm
• Vacuum Capacity: 5.0 x 10-7 torr
• Chamber Working Pressure: Less than 5.0 x 10-6 torr
• Cathode size: O.D 3” x 3 Sets
• Plasma Power Supply: RF & DC Power Supply
• Film Thickness Uniformity :< + /-5 % within 100 X 100 mm Glass

Design :

• Sliding door allows easy and safe sample loading
• Isolated rear door for easy cleaning maintenance

Configuaration

• Auto Control by 10.5“ Touch Panel (Auto Pumping, Auto Venting, Auto System Shut Down)

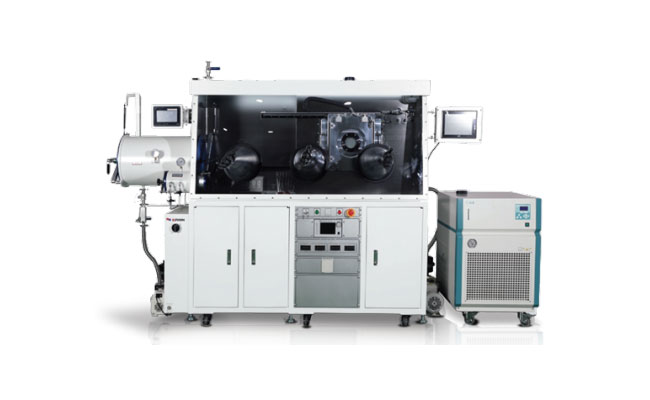

E-Beam

Korea Kiyon’s Vacuum Deposition System : E-Beam /KBSD-100 with following features Design and configurartion.

Features :

• Standard Chamber Size: 450(W) x 450(D) x 500(H) mm
• Sample Size: Max. 100 x 100 mm
• E-Beam Power Capacity: 6 KW
• E-Beam Gun: 7cc x 6 Pockets
• Vacuum Capacity: 5.0 x 10-7 torr
• Chamber Working Pressure: Less than 5.0 x 10-6 torr
• Film Thickness Uniformity: < + /-5 % within 100 X 100 mm Glass

Design :

• Sliding door allows easy and safe sample loading
• Isolated rear door for easy cleaning maintenance

Configuration

• Auto Control by 10.5“ Touch Panel (Auto Pumping, Auto Venting, Auto System Shut Down)
• Co-Deposition available
• Sample Rotation / Heating or Cooling(Optional)

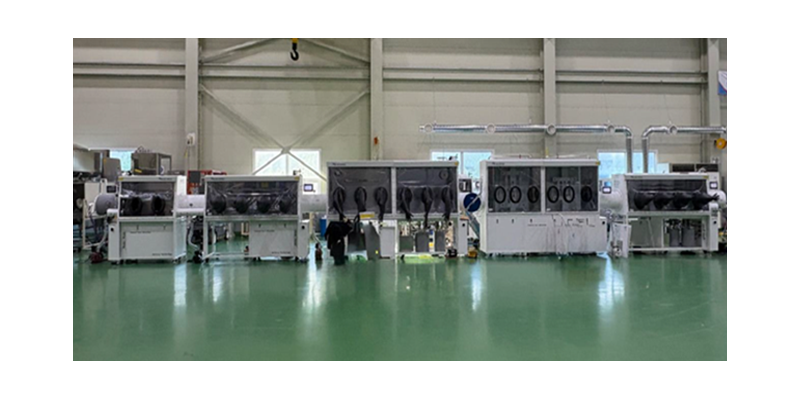

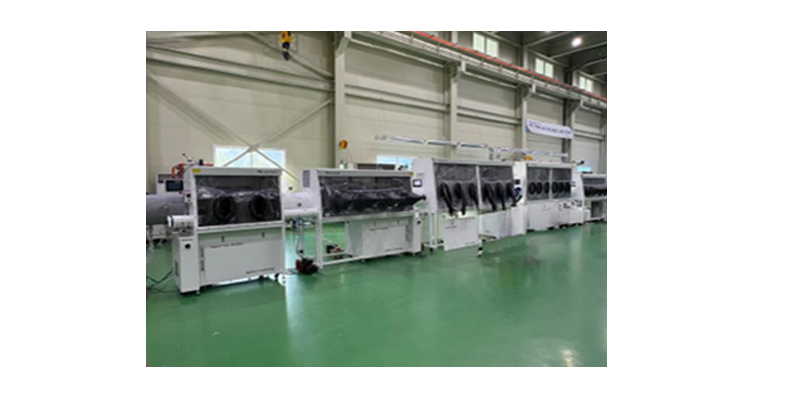

Lithium Battery Material Processing Customized Glove Box

Korea Kiyon’s Lithium Battery Material Processing Customized Glove Box. Turnkey solutions for battery with gloveboxes from the R & D stage to pilot-scale industrial research.

• GB 1 : Material Storage
• GB 2 : Electrode Mixing & Material storage
• GB 3 : Coating , Oven Dry
• GB 4 : Cell Production (Hydrulic Press)
• GB 5 : Cell Production ( Tab Welding)
